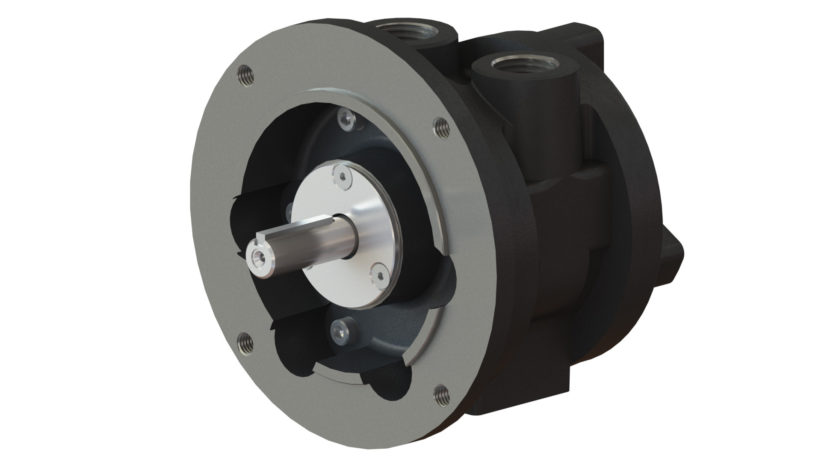

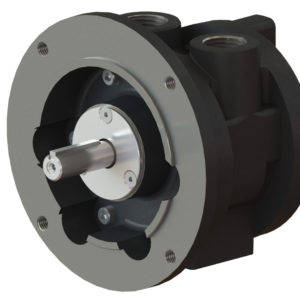

Standard Vane Motors

$100,000.00

Features:

  • No pins or springs
  • Reliable, economic design
  • Guaranteed positive start-up
  • Simple adjustable torque and output speed
  • Can be stalled under load without damage
  • Instantly reversible
  • Oil-less operation possible (see our NL Series)
  • A variety of mountings available:
    • VA#J – Foot / VA#X – Face
    • VA#C – NEMA / VS#C – IEC
  • Certified according ATEX:
    • II 2G Ex h IIC T4 Gb
    • II 2D Ex h IIIC T135ºC Db
    • -20°C ≤ Ta ≤ +60°C
  • 2K / 4K / Offshore coatings available on request
  • Mufflers and Accessories
SKU: Standard-Vane Category:

Description

The vane air motor is the most commonly used air motor. They are available in a wide range of power. The vane motors are lighter and smaller in comparison with piston air motors with equivalent power.

Model

Max. Power

Torque at
Max. Power

Min. Starting
Torque @ 7 Bar

Max Speed

Download Specs

V1
0.6 HP
6.6 IN.LBS
7.5 IN.LBS
6000 RPM
Download
V2
1.1 HP
17.7 IN.LBS
20 IN.LBS
4000 RPM
Download
V4
2.8 HP
43.2 IN.LBS
42 IN.LBS
4000 RPM
Download
V6
4.6 HP
92.4 IN.LBS
72 IN.LBS
3000 RPM
Download
V8
7.2 HP
145.2 IN.LBS
150 IN.LBS
3000 RPM
Download
V10
12.8 HP
328.8 IN.LBS
300 IN.LBS
2400 RPM
Download
V12
19 HP
662.4 IN.LBS
636 IN.LBS
1800 RPM
Download
